The circuit shown in Fig. 14.98 has the impedance  figure 1.png)
 figure 2.png)

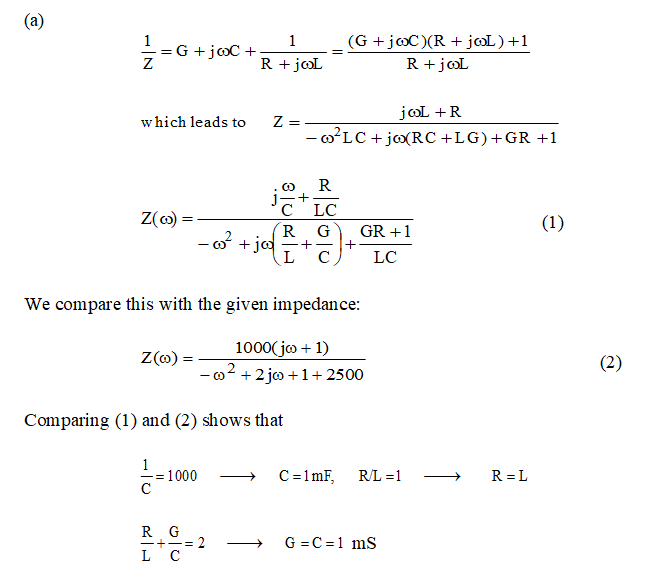

 FIGURE 4.png)

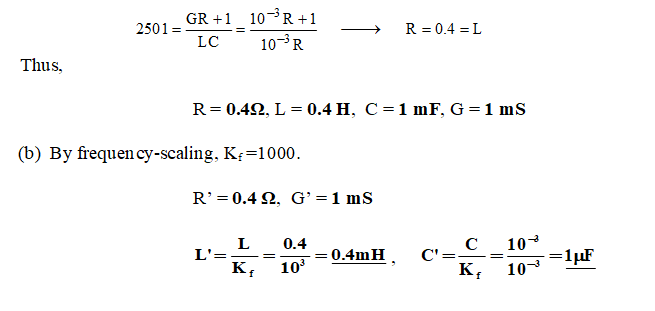

 ANSWER.png)
