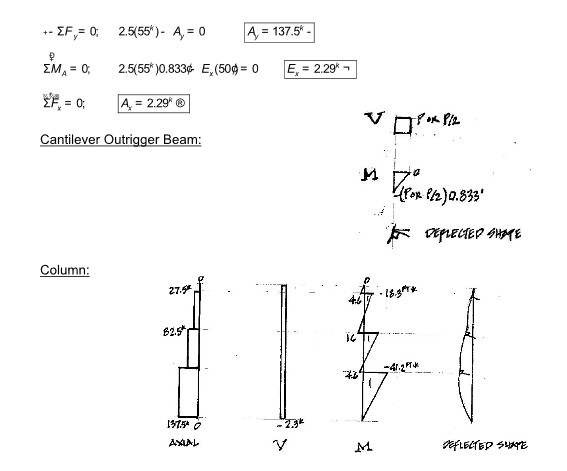

Draw the shear and moment curves for the column in Figure P5.46. Sketch the deflected shape. The load P is equal to 55 kips, and the load is eccentric from the column centerline with an eccentricity of 10 in.
Trades & Technology
You might also like to view...
A(n) ____ section is produced by a cutting plane that is parallel to the short axis of the structure and is usually parallel to the materials used to frame the roof, ceiling, and floor systems.
A. transverse B. obverse C. reverse D. longitudinal
Trades & Technology
Lines on drawings used to indicate an area that has been cut away and shown in a section view are called _____.
a. extension lines b. break lines c. phantom lines d. cutting plane lines
Trades & Technology
Sodic soils generally have better physical conditions than either saline or saline-sodic soils
Indicate whether the statement is true or false
Trades & Technology
If one input of an AND gate is HIGH while the other is a clock signal, the output is
A) LOW. B) a clock signal. C) HIGH. D) cannot be determined
