A passive circuit consists of a resistor R and an inductor L in parallel. Define the input signal to the system as the voltage v(t) across both the resistor and inductor and define the response signal as the total current i(t) that flows into the parallel combination of the resistor and inductor.

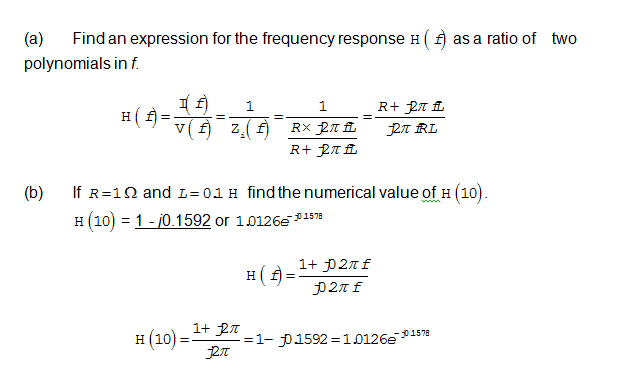

(a) Find an expression for the frequency response H( f ) as a ratio of two polynomials in f.
(b) If R = 1 ? and L = 0.1 H find the numerical value of H(10) .
